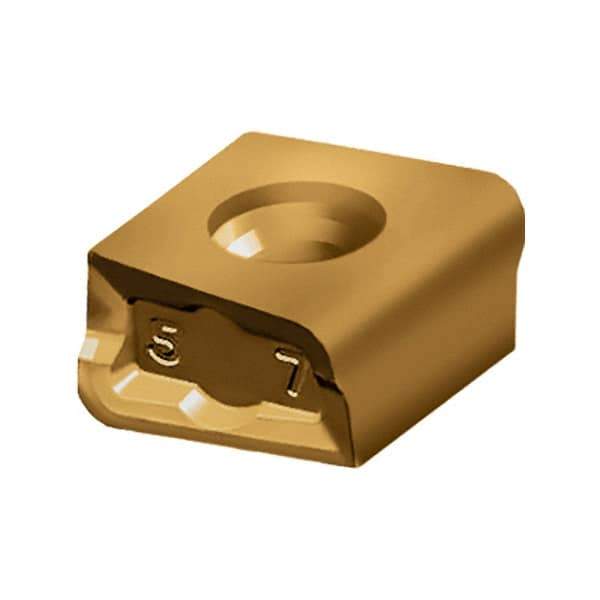

Walter - F57T Grade WSP45S Milling Insert - 4.5mm Thick, 0.4mm Corner Radius
Item #: 47327127
Brand: Walter
Model #: 7057762
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Width (mm) | 9.40 |
| Width (Decimal Inch) | 0.3700 |
| Length (mm) | 8.00 |
| Length (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | F57T |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Manufacturers Catalog Number | LNMU080404-F57T WSP45S |
