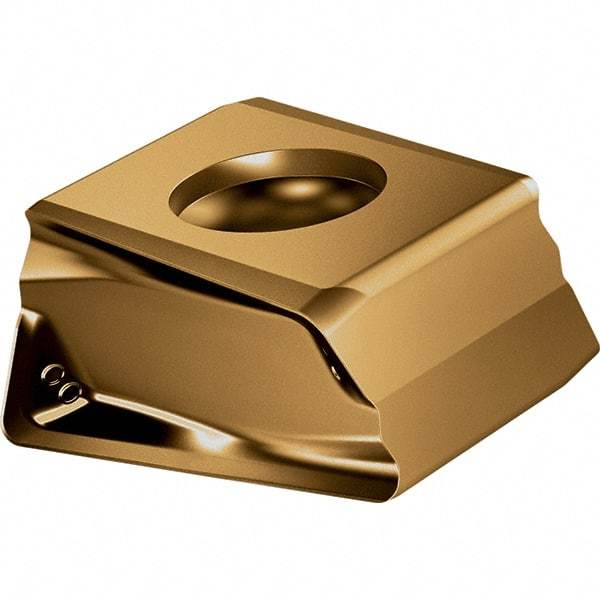

Walter - L55T Grade WKP35G Milling Insert - 4.5mm Thick, 1.2mm Corner Radius
Item #: 47326186
Brand: Walter
Model #: 7170555
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35G |
| Width (mm) | 8.50 |
| Width (Decimal Inch) | 0.3350 |
| Length (mm) | 9.00 |
| Length (Decimal Inch) | 0.3540 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | L55T |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Manufacturers Catalog Number | LNHU090412R-L55T WKP35G |
