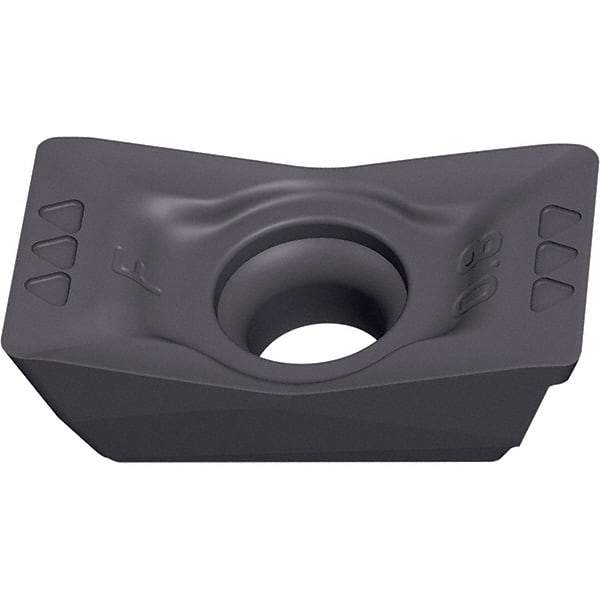

Walter - F56 Grade WXM15 Milling Insert - 6.15mm Thick, 10.8mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47309596
Brand: Walter
Model #: 6632444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WXM15 |
| Width (mm) | 10.80 |
| Width (Decimal Inch) | 0.4250 |
| Length (mm) | 17.50 |
| Length (Decimal Inch) | 0.6890 |
| Inscribed Circle (mm) | 10.80 |
| Inscribed Circle (Decimal Inch) | 0.4250 |
| Thickness (mm) | 6.15 |
| Thickness (Decimal Inch) | 0.2420 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | F56 |
| Maximum Depth of Cut (mm) | 17.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Manufacturers Catalog Number | ADGX1606PER-F56 WXM15 |
