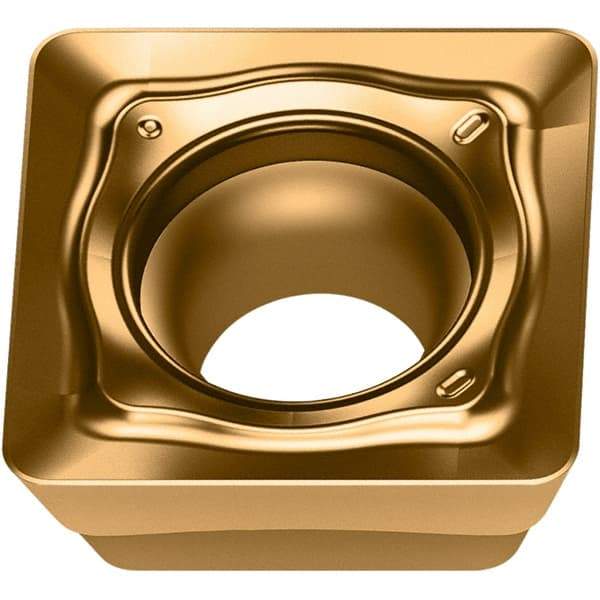

Walter - D57 Grade WKP25S Milling Insert - 2.78mm Thick, 6.35mm Inscribed Circle, 0.4mm Corner Radius
Item #: 47284252
Brand: Walter
Model #: 6795976
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP25S |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.78 |
| Thickness (Decimal Inch) | 0.1090 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | D57 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturers Catalog Number | SDGT06T2PDR-D57 WKP25S |
