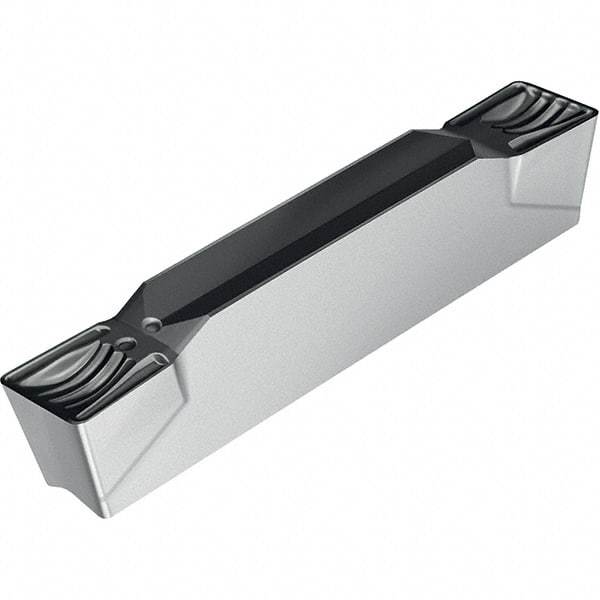

Walter - UF4 Grade WSM33S, 8mm Cutting Width Grooving Insert - 4mm Max Depth of Cut, 0.8mm Corner Radius, TiAlN+Al2O3+(Al) Finish
Item #: 47280144
Brand: Walter
Model #: 6641657
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | WSM33S |
| Coating | TiAlN+Al2O3+(Al) |
| Cutting Direction | Neutral |
| Chipbreaker | UF4 |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.031 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | GX-E-UF4 |
| Manufacturers Catalog Number | GX30-5E800N08-UF4 WSM33S |
| External Relief Angle | 10 |
