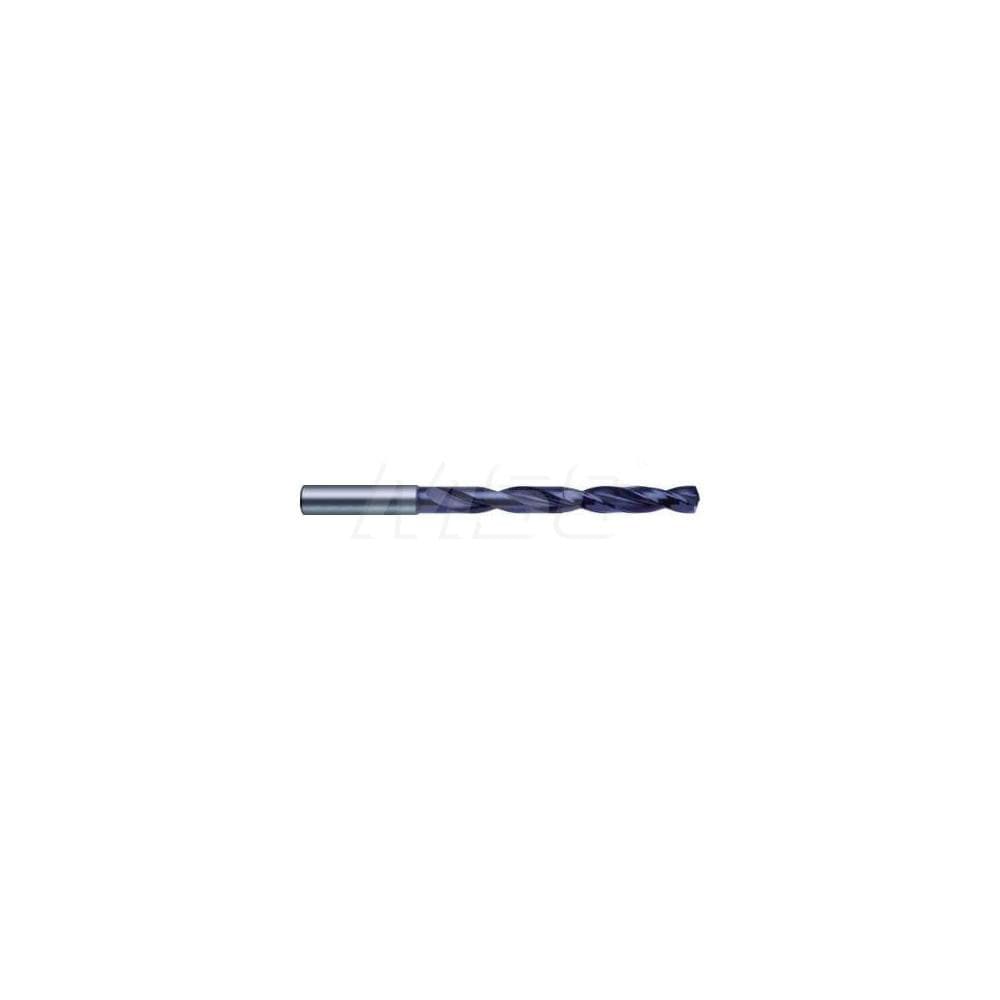

Jobber Drill: 9.30 mm Dia, 140 deg Point, Solid Carbide
Item #: 06827943
Brand: Guhring
Model #: 9055120093000
Product Specifications
| Drill Bit Size (mm) | 9.30 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Cutting Direction | Right Hand |
| Point Type | Facet |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Overall Length (mm) | 139.00 |
| Overall Length (Decimal Inch) | 5.4724 |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7402 |
| Series | 5512 |
| Tool Application | Self-Centering |
| Flute By Diameter Ratio | 7xD |
| Shank Diameter (mm) | 10 |
| Maximum Drilling Depth (Decimal Inch) | 3.1910 |
| Maximum Drilling Depth (mm) | 81.05 |
| Shank Length (mm) | 40 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 6535 |
| Drill Bit Size Range (mm) | 9.00 - 10.00 |
| UNSPSC Code | 23241634 |
