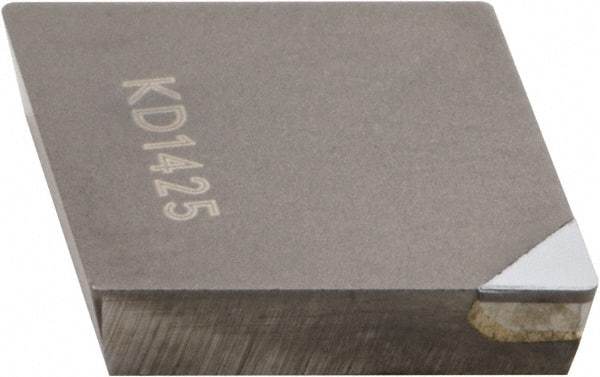

Kennametal - CPG421 Grade KD1425 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 46868279
Brand: Kennametal
Model #: 3648330
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CPG |
| Insert Size | 421 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5077 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KD1425 |
| Coating | Uncoated |
| ISO Number | CPGN120304F |
| Relief Angle | 11 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kendex |
| Insert Holding Method | Clamp |
| Shape | Diamond |
