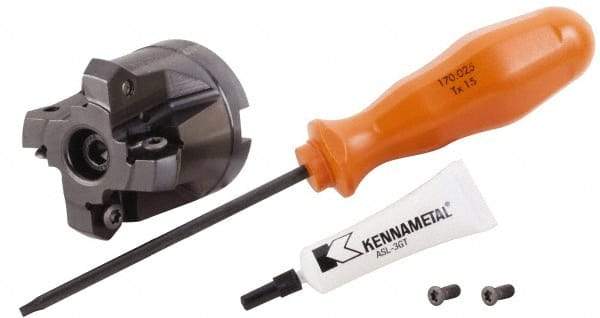

Kennametal - 1" Cut Diam, 1/2" Arbor Hole, 4.42mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 4 Inserts, HNGJ 0604... Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series Dodeka Mini HD
Item #: 46865234
Brand: Kennametal
Model #: 4136389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (mm) | 44.29 |
| Cutting Diameter (Decimal Inch) | 1.7437 |
| Arbor Hole Diameter (mm) | 12.70 |
| Arbor Hole Diameter (Inch) | 1/2 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | HNGJ 0604... |
| Series | Dodeka Mini HD |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.42 |
| Maximum Depth of Cut (Decimal Inch) | 0.1740 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | KSHRHD |
| Number of Flutes | 4 |
| Hub Diameter (Decimal Inch) | 1.4400 |
| Hub Diameter (mm) | 36.58 |
| Maximum Body Diameter (Decimal Inch) | 1.6370 |
| Maximum RPM | 16700 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGJ 0604ANENLD |
