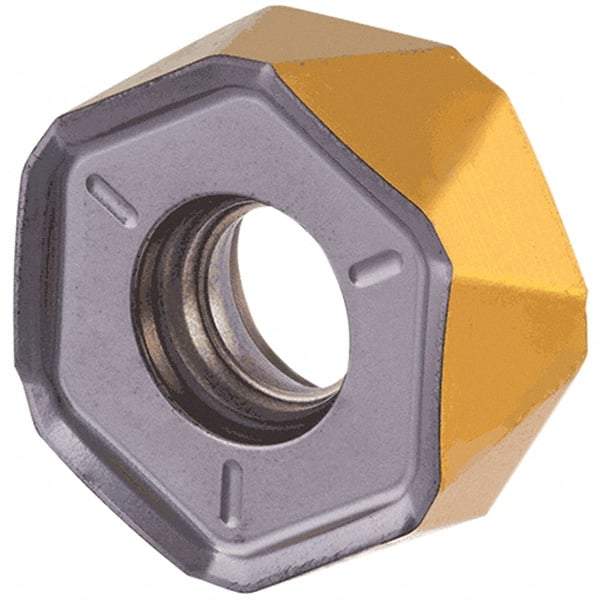

Iscar - H1200 HXCU0606 TR Grade IC5500 Carbide Milling Insert - Al2O3 Finish, 7.15mm Thick, 14.88mm Inscribed Circle, 1.6mm Corner Radius
Item #: 46696324
Brand: Iscar
Model #: 5668490
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H1200 HXCU |
| Insert Size | 0606 |
| Material | Carbide |
| Manufacturer's Grade | IC5500 |
| Coating | Al2O3 |
| Length (mm) | 6.43 |
| Length (Decimal Inch) | 0.2530 |
| Inscribed Circle (mm) | 14.88 |
| Inscribed Circle (Decimal Inch) | 0.5860 |
| Thickness (mm) | 7.15 |
| Thickness (Decimal Inch) | 0.2810 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | CVD |
| Shape | Hexagon |
| Chipbreaker | TR |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Manufacturers Catalog Number | H1200 HXCU 0606-TR |
| ISO Number | H1200 HXCU 0606-TR |
| ANSI Number | H1200 HXCU 0606-TR |
