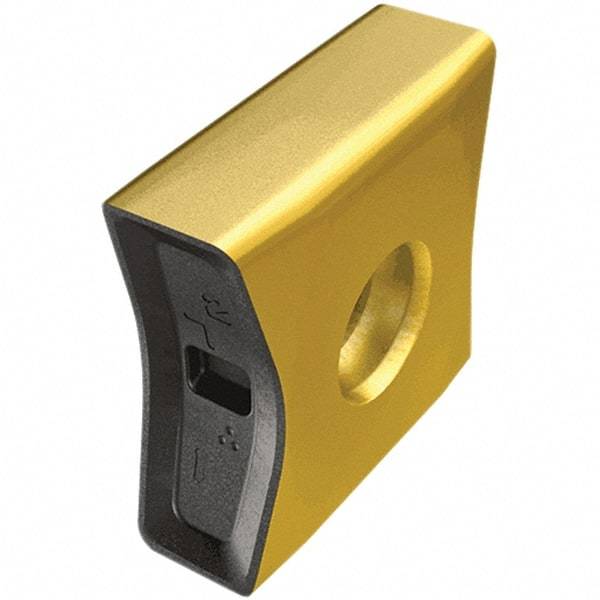

Iscar - LNAT150616 PM Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 15.3mm Thick, 1.6mm Corner Radius
Item #: 46675187
Brand: Iscar
Model #: 5606779
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNAT |
| Insert Size | 150616 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.00 |
| Width (Decimal Inch) | 0.2360 |
| Length (mm) | 15.00 |
| Length (Decimal Inch) | 0.5910 |
| Thickness (mm) | 15.30 |
| Thickness (Decimal Inch) | 0.6020 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Tangential |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Manufacturers Catalog Number | LNAT 150616-TN-PM |
| ISO Number | LNAT 150616-TN-PM |
| ANSI Number | LNAT 150616-TN-PM |
