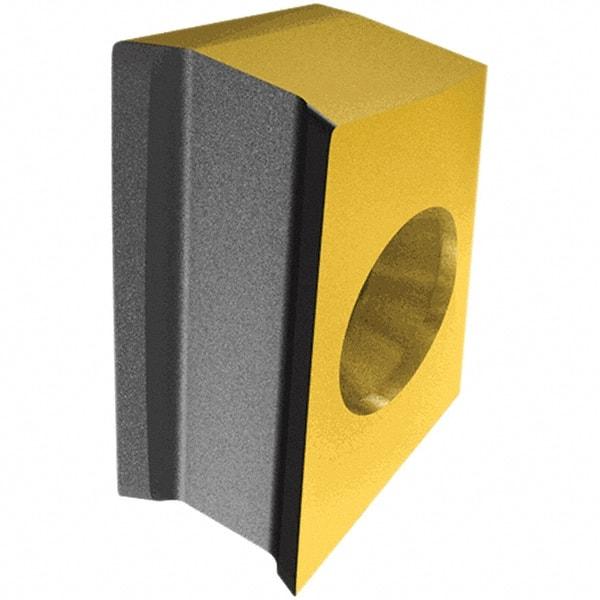

Iscar - SEMT1404 ATR Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 4.95mm Thick, 0.5mm Corner Radius
Item #: 46673695
Brand: Iscar
Model #: 5668053
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEMT |
| Insert Size | 1404 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Length (mm) | 14.20 |
| Length (Decimal Inch) | 0.5590 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1950 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 20.000 |
| Coating Process | PVD |
| Included Angle | 45 |
| Shape | Square |
| Chipbreaker | ATR |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Manufacturers Catalog Number | SEMT 140405ATR |
| ISO Number | SEMT 140405ATR |
| ANSI Number | SEMT 140405ATR |
