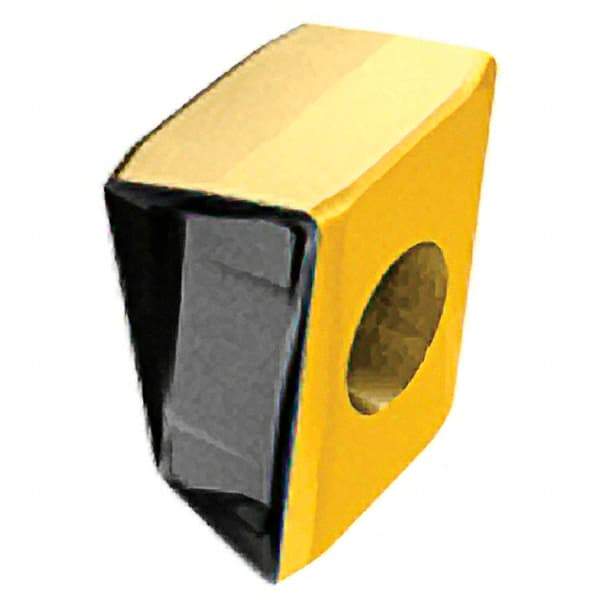

Iscar - T490 LNHT080404 PNR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 7.51mm Thick, 0.4mm Corner Radius
Item #: 46673505
Brand: Iscar
Model #: 5668170
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 080404 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 4.24 |
| Width (Decimal Inch) | 0.1670 |
| Length (mm) | 8.59 |
| Length (Decimal Inch) | 0.3380 |
| Thickness (mm) | 7.51 |
| Thickness (Decimal Inch) | 0.2960 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Shape | Tangential |
| Chipbreaker | PNR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNHT080404PNR-PLS |
| ISO Number | T490 LNHT080404PNR-PLS |
| ANSI Number | T490 LNHT080404PNR-PLS |
