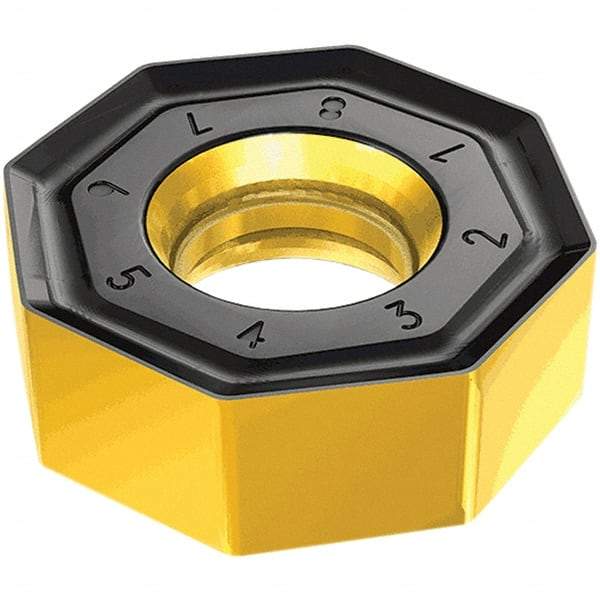

Iscar - ONMU070610 TR Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 6.5mm Thick, 18.8mm Inscribed Circle, 1mm Corner Radius
Item #: 46672689
Brand: Iscar
Model #: 5668869
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 070610 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Width (mm) | 7.00 |
| Width (Decimal Inch) | 0.2760 |
| Inscribed Circle (mm) | 18.80 |
| Inscribed Circle (Decimal Inch) | 0.7400 |
| Thickness (mm) | 6.50 |
| Thickness (Decimal Inch) | 0.2560 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Chipbreaker | TR |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Manufacturers Catalog Number | ONMU 070610-TR |
| ISO Number | ONMU 070610-TR |
| ANSI Number | ONMU 070610-TR |
