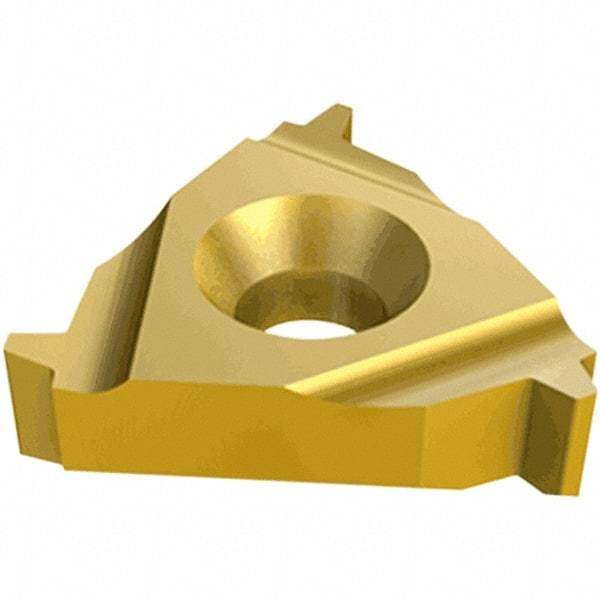

Iscar - 11IR Internal Right Hand ISO Laydown Threading Insert - Grade IC908, TiAlN Coated Carbide, 6.35mm Inscribed Circle
Item #: 46670147
Brand: Iscar
Model #: 5902605
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 11IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | ISO |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Internal Pitch (mm) | 0.40 |
| Pitch (mm) | 0.40 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.02 |
| Corner Radius (Decimal Inch) | 0.0010 |
