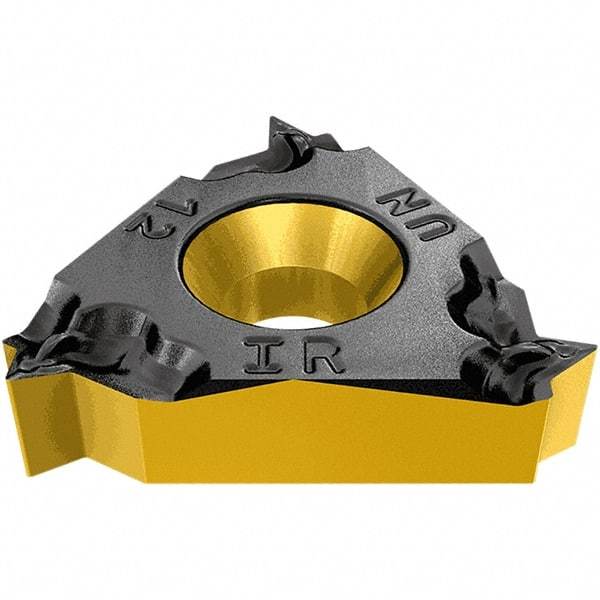

Iscar - 16IRB Internal Right Hand 12 UN Laydown Threading Insert - Grade IC908, TiAlN Coated Carbide, 9.53mm Inscribed Circle
Item #: 46670139
Brand: Iscar
Model #: 5902817
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16IRB |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Internal Threads Per Inch | 12 |
| Internal Pitch (mm) | 12.00 |
| Threads Per Inch | 12 |
| Pitch (mm) | 12.00 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.13 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Chipbreaker | M |
