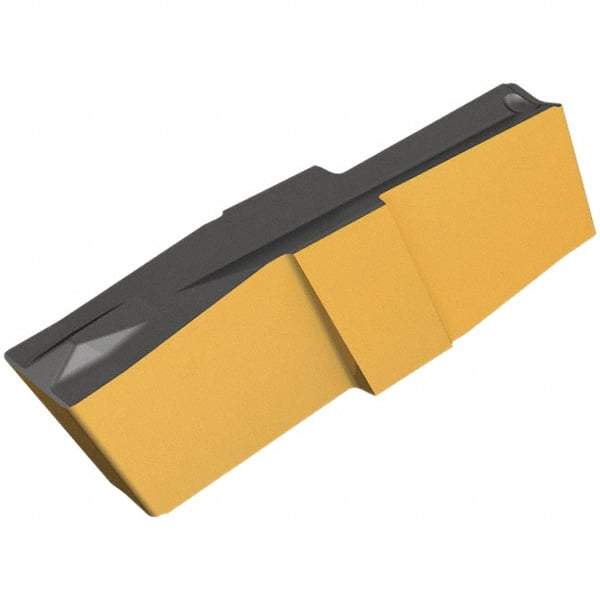

Iscar - 5.00-0.40GIP Grade IC520, 5mm Cutting Width Carbide Grooving Insert - 0.4mm Corner Radius, Uncoated
Item #: 46665873
Brand: Iscar
Model #: 6495656
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 5.00-0.40 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Manufacturer's Grade | IC520 |
| Coating | Uncoated |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| ISO Number | GIP 5.00-0.40 IC20 |
| Manufacturers Catalog Number | 6495656 |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1570 |
