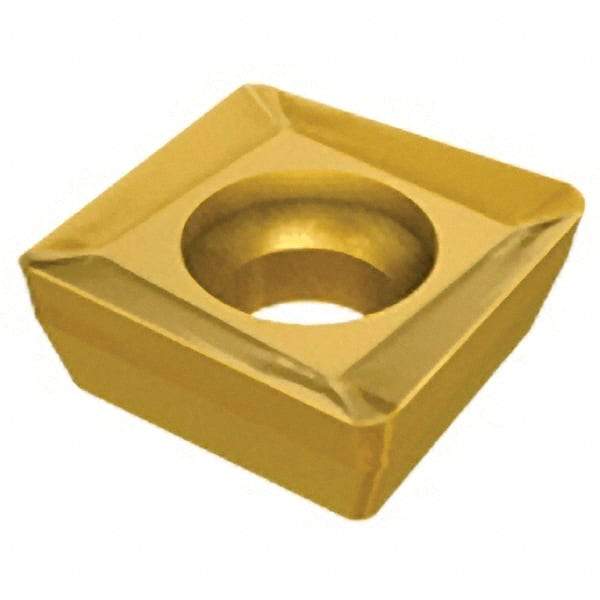

Iscar - SPMT100408 M Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 4.23mm Thick, 1/32" Corner Radius
Item #: 46661013
Brand: Iscar
Model #: 3324849
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Length (mm) | 10.20 |
| Length (Decimal Inch) | 0.4020 |
| Thickness (mm) | 4.23 |
| Thickness (Decimal Inch) | 0.1670 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Corner Radius (mm) | 0.60 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M |
| Manufacturers Catalog Number | SPMT 100408R-HQ-M |
| ISO Number | SPMT 100408R-HQ-M |
| ANSI Number | SPMT 100408R-HQ-M |
