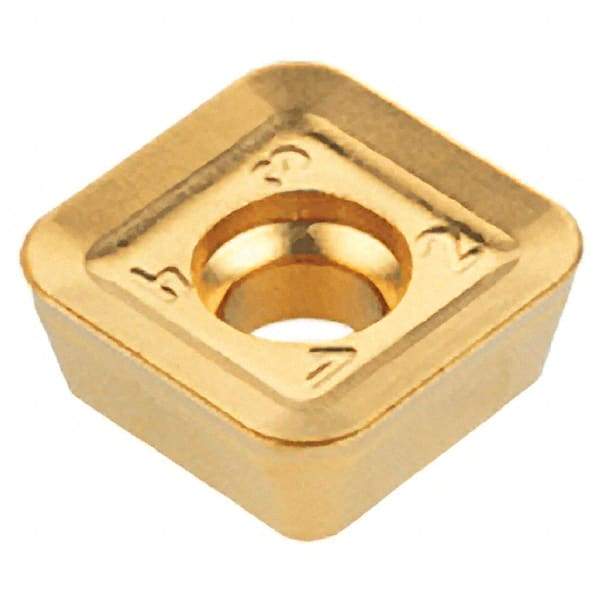

Iscar - QDMT120520 M Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5mm Thick, 5/64" Corner Radius
Item #: 46660973
Brand: Iscar
Model #: 3324784
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDMT |
| Insert Size | 120520 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1970 |
| Corner Radius (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M |
| Manufacturers Catalog Number | QDMT 120520PDTN-M |
| ISO Number | QDMT 120520PDTN-M |
| ANSI Number | QDMT 120520PDTN-M |
