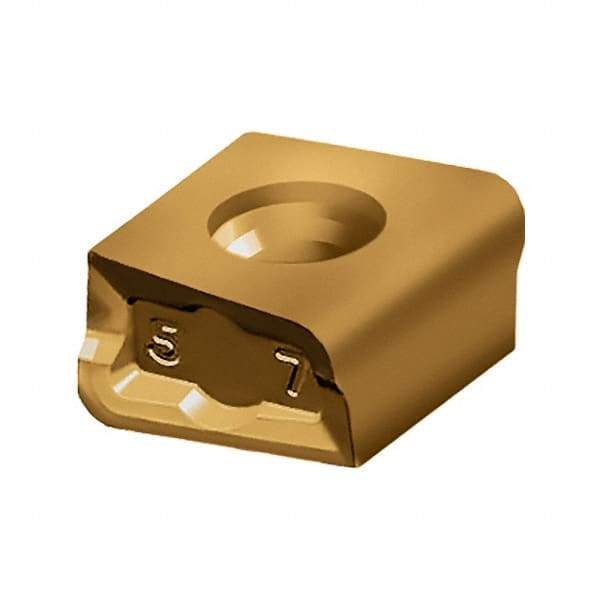

Walter - LNHU160812 F57T Grade WKP35G Carbide Milling Insert - TiAlN/TiN Finish, 8mm Thick, 1.2mm Corner Radius
Item #: 46627139
Brand: Walter
Model #: 7347283
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNHU |
| Insert Size | 160812 |
| Material | Carbide |
| Material Grade | K35/P35/K35 |
| Manufacturer's Grade | WKP35G |
| Coating | TiAlN/TiN |
| Length (mm) | 16.00 |
| Thickness (mm) | 8.00 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Rhombic |
| Insert Hand | Neutral |
| Chipbreaker | F57T |
| Maximum Depth of Cut (mm) | 16.00 |
| Manufacturers Catalog Number | LNHU160812-F57T WKP35G |
