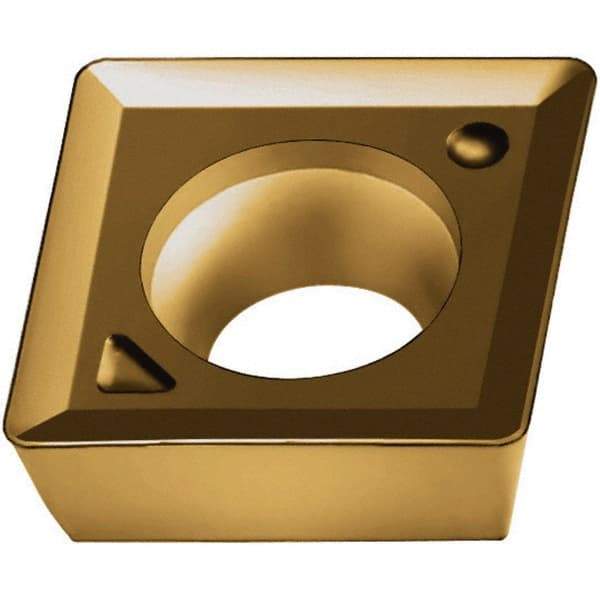

Walter - MPMX0803 F57 Grade WKP35G Carbide Milling Insert - TiAlN/TiN Finish, 1/8" Thick, 8mm Inscribed Circle, 0.5mm Corner Radius
Item #: 46627089
Brand: Walter
Model #: 7347280
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MPMX |
| Insert Size | 0803 |
| Material | Carbide |
| Material Grade | K35/P35/K35 |
| Manufacturer's Grade | WKP35G |
| Coating | TiAlN/TiN |
| Length (mm) | 8.30 |
| Inscribed Circle (mm) | 8.00 |
| Thickness (Inch) | 1/8 |
| Corner Radius (mm) | 0.50 |
| Hole Diameter (mm) | 3.40 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Diamond |
| Insert Hand | Neutral |
| Chipbreaker | F57 |
| Maximum Depth of Cut (mm) | 8.30 |
| Manufacturers Catalog Number | MPMX080305-F57 WKP35G |
