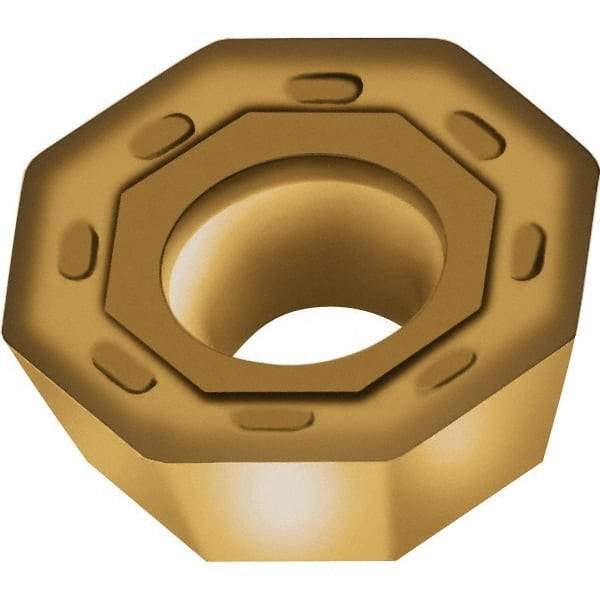

Walter - ODMT060512 D57 Grade WKP35G Carbide Milling Insert - TiAlN/TiN Finish, 5.56mm Thick, 5/8" Inscribed Circle, 1.2mm Corner Radius
Item #: 46626867
Brand: Walter
Model #: 7347319
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODMT |
| Insert Size | 060512 |
| Material | Carbide |
| Material Grade | K35/P35/K35 |
| Manufacturer's Grade | WKP35G |
| Coating | TiAlN/TiN |
| Length (mm) | 6.58 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (mm) | 5.56 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | D57 |
| Maximum Depth of Cut (mm) | 6.58 |
| Manufacturers Catalog Number | ODMT060512-D57 WKP35G |
