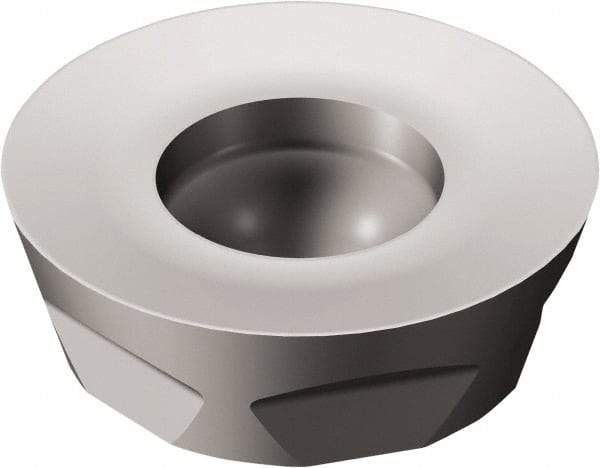

Sandvik Coromant - R3000932 PM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 3.18mm Thick, 9.53mm Inscribed Circle, 4.76mm Corner Radius
Item #: 46612750
Brand: Sandvik Coromant
Model #: 7100975
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 0932 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 4.76 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Manufacturers Catalog Number | R300-0932E-PM 1130 |
