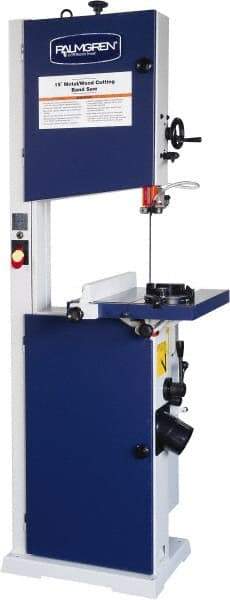

Palmgren - 15" Throat Capacity, Variable Speed Pulley Vertical Bandsaw - 45, 65, 90, 110, 155, 215, 3,000 SFPM, 1 hp, Single Phase
Item #: 45990314
Brand: Palmgren
Model #: 9683115
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Drive Type | Variable Speed Pulley |
| Throat Capacity (Inch) | 15 |
| Height Capacity (Inch) | 10 |
| Phase | 1 |
| Blade Width (Inch) | 3/16 to 3/4 |
| Blade Speeds (SFPM) | 45; 65; 90; 110; 155; 215; 3000.00 |
| Blade Length (Inch) | 114 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Cast Wheels |
| Table Length (Inch) | 15 |
| Table Width (Inch) | 15 |
| Floor to Table Height (Inch) | 35-1/2 |
| Table Tilt Right (Degrees) | 45.00 |
| Number of Slots | 1 |
| Horsepower (HP) | 1.00 |
| Voltage | 115/230 |
| Base Width (Inch) | 23 |
| Base Depth (Inch) | 20 |
| Overall Height (Inch) | 78 |
| Certification | CSA/UL |
| Warranty | Mfr's 3 Year Warranty |
