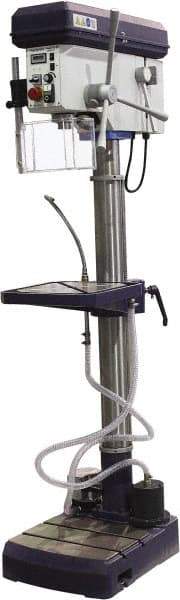

Palmgren - 16" Swing, Variable Speed Pulley Drill Press - 12 Speed, 2 hp, Single Phase
Item #: 45989316
Brand: Palmgren
Model #: 9680217
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 16 |
| Spindle Speed Control | Variable Speed Pulley |
| Phase | 1 |
| Spindle Taper Size | 3MT |
| Spindle Travel Length (Inch) | 4 |
| Horsepower (HP) | 2 |
| Voltage | 230 |
| Minimum Spindle Speed (RPM) | 35 |
| Maximum Spindle Speed (RPM) | 4000 |
| Drilling Capacity in Steel (Inch) | 1-3/32 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/2 |
| Tapping Capacity in Steel (Inch) | 7/8 |
| Tapping Capacity in Cast Iron (Inch) | 1 |
| Number of Spindle Speeds | 12 |
| Spindle to Table Distance (Decimal Inch) | 33.8580 |
| Spindle to Column Distance (Decimal Inch) | 8.0000 |
| Spindle to Column Distance (Inch) | 8 |
| Table Length (Decimal Inch) | 13.3860 |
| Table Width/Diameter (Decimal Inch) | 14.1730 |
| Table Load Capacity (Lb.) | 200.00 |
| Table Slot Size (Decimal Inch) | 0.5510 |
| Base Length (Decimal Inch) | 14.5700 |
| Base Width (Decimal Inch) | 12.6000 |
| Base Depth (Decimal Inch) | 7.0000 |
| Column Diameter (Decimal Inch) | 3.6220 |
| Overall Length (Inch) | 28 |
| Overall Height (Inch) | 69 |
| Overall Depth (Inch) | 19 |
