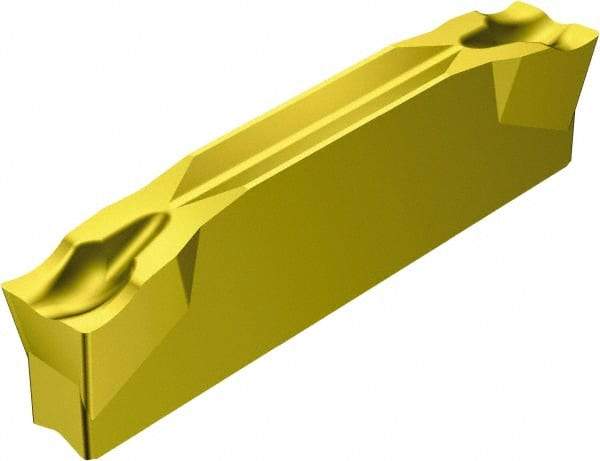

Sandvik Coromant - L123E2E CM 2135 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 5° Left Hand Lead Angle, 0.0079" Cnr Rad, TiCN/Al2O3/TiN Coated
Item #: 45494523
Brand: Sandvik Coromant
Model #: 5733289
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L123E2 |
| Insert Size | E |
| Lead Angle Direction | Left Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Series | CoroCut 1-2 |
| Relief Angle | 5 |
| Chipbreaker | CM |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | MTCVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | E |
| Width Tolerance | +0.004/-0 (Inch) |
| Manufacturers Catalog Number | 5733289 |
