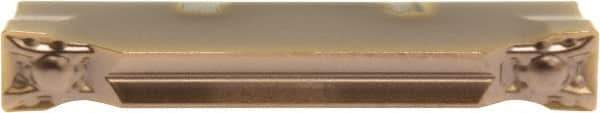

Sumitomo - 3002GCM ML Grade AC530U, 3mm Cutting Width Carbide Grooving Insert - Neutral, 0.2007mm Corner Radius, TiAlN/AlCrN Finish
Item #: 45206356
Brand: Sumitomo
Model #: 18HMAMA
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GCM |
| Insert Size | 3002 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | AC530U |
| Coating | TiAlN/AlCrN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.80 |
| Cutting Height (Decimal Inch) | 0.1496 |
| Insert Seat Size | 3 |
| Chipbreaker | ML |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.2007 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 21.10 |
| Overall Length (Decimal Inch) | 0.8307 |
| Series | GND |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
