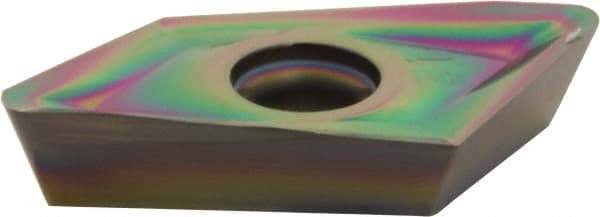

Sumitomo - AECT220612 Grade DL1000 Carbide Milling Insert - DLC Finish, 1/4" Thick, 1.19mm Corner Radius
Item #: 45202777
Brand: Sumitomo
Model #: 14EK616
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AECT |
| Insert Size | 220612 |
| Material | Carbide |
| Manufacturer's Grade | DL1000 |
| Coating | DLC |
| Length (Decimal Inch) | 0.8563 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Hole Diameter (mm) | 5.99 |
| Hole Diameter (Decimal Inch) | 0.2360 |
| Relief Angle | 20.000 |
| Shape | Parallelogram |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9450 |
| Cutter Series Compatibility | WAX4000 CUTTER SERIES |
