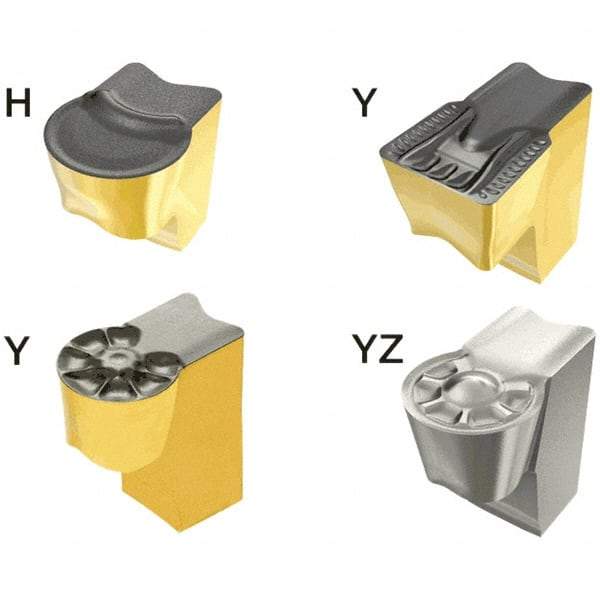

Iscar - 840TAGB Y Grade IC806, 8mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Neutral, 4mm Corner Radius, TiAlN Finish
Item #: 45093945
Brand: Iscar
Model #: 6405398
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TAGB |
| Insert Size | 840 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC806 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Chipbreaker | Y |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Turning |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Series | Sumo-Grip |
