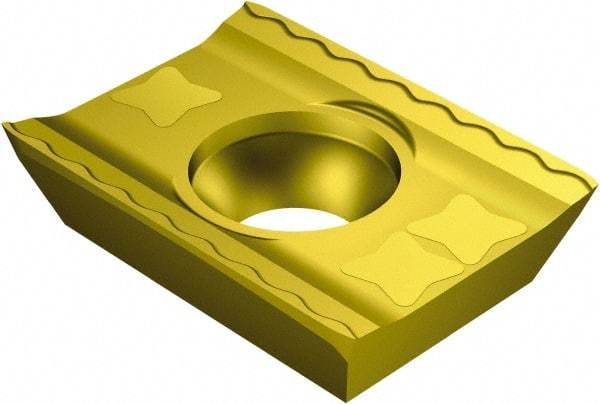

Sandvik Coromant - LDHT190400 ML Grade 1025 Carbide Milling Insert - TiCN/TiN Finish, 4.7498mm Thick, 0.2mm Corner Radius
Item #: 45067329
Brand: Sandvik Coromant
Model #: 5733675
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LDHT |
| Insert Size | 190400 |
| Material | Carbide |
| Manufacturer's Grade | 1025 |
| Coating | TiCN/TiN |
| Width (mm) | 13.77 |
| Width (Decimal Inch) | 0.5420 |
| Length (mm) | 19.10 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Hole Diameter (mm) | 5.70 |
| Hole Diameter (Decimal Inch) | 0.2244 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | ML |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LDHT 19 04 00-ML 1025 |
