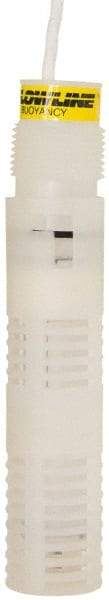

Flowline - 3/4" Thread, 25 Max psi, 176°F Max, Liquid Level Vertical Buoyancy Switch - 0.8 Float SG, PVDF Stem, High or Low Alarms, SPDT Switch Logic
Item #: 44898831
Brand: Flowline
Model #: LV10-5301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Vertical Buoyancy Level Switch |
| Thread Size (Inch) | 3/4 |
| Maximum Working Pressure (psi) | 25 |
| Maximum Operating Temperature (F) | 176 |
| Material | PVDF |
| Float Material | PVDF |
| Stem Material | PVDF |
| Diameter (mm) | 26.70 |
| Diameter (Inch) | 1.0500 |
| Length (Decimal Inch) | 5.38 |
| Applications | High or Low Alarms |
| Float SG | 0.80 |
| Thread Type | NPT |
| Accuracy | ±2mm |
| Repeatability | ±1mm |
| Rating | NEMA 6 |
| Power | 120 VAC |
| Wattage | 15 VA |
| Switch Logic | SPDT |
