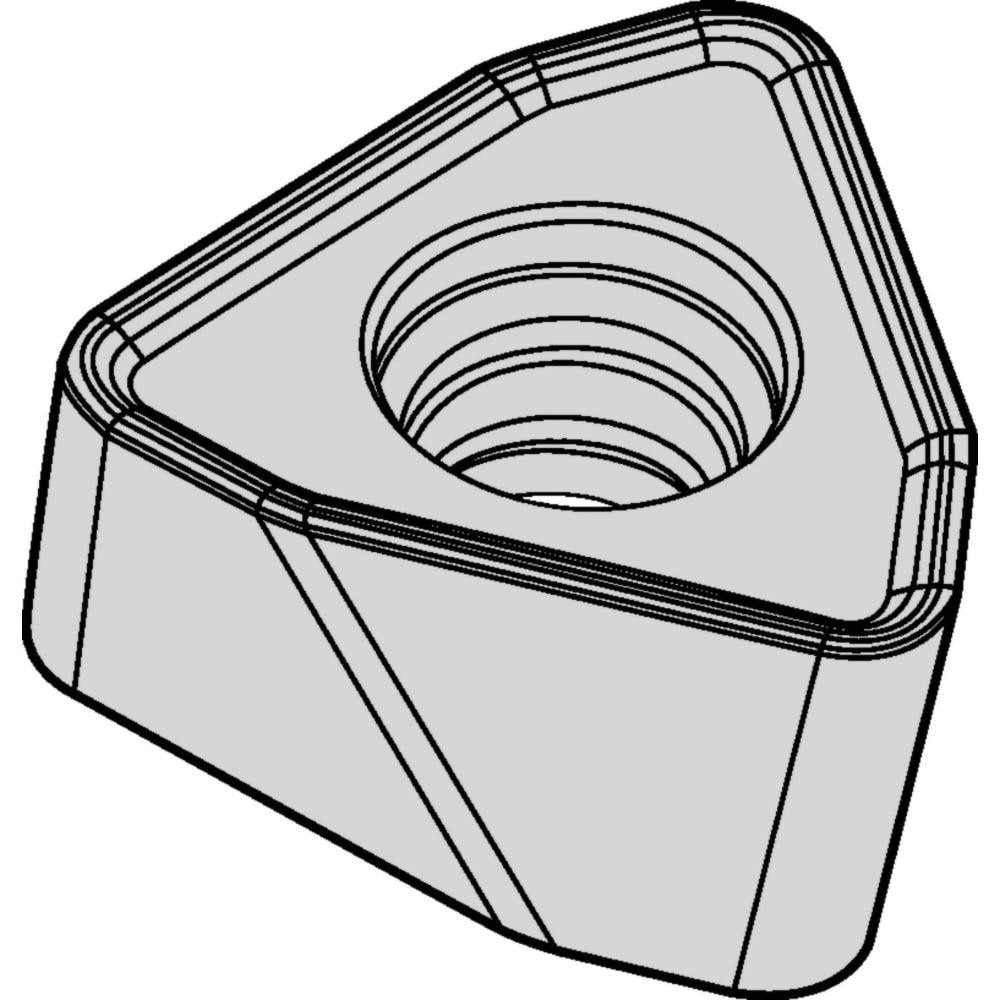

Milling Insert: WOEJ080412SRMH WK15CM, Solid Carbide
Item #: 94012861
Brand: Widia
Model #: 5427443
Product Specifications
| Insert Style | WOEJ |
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | WK15CM |
| Corner Radius (Decimal Inch) | 0.0482 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 080412 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.3069 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2460 |
| Series | M370 |
| Coating Process | MTCVD |
| Hole Diameter (Decimal Inch) | 0.1402 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | WOEJ080412SRMH |
| Iso Code | WOEJ080412SRMH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | WOEJ080412SRMH |
| Cutter Series Compatibility | M370 |
| Chip Breaker | MH |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.4130 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4130 |
| Country of Origin | UNITED STATES |
