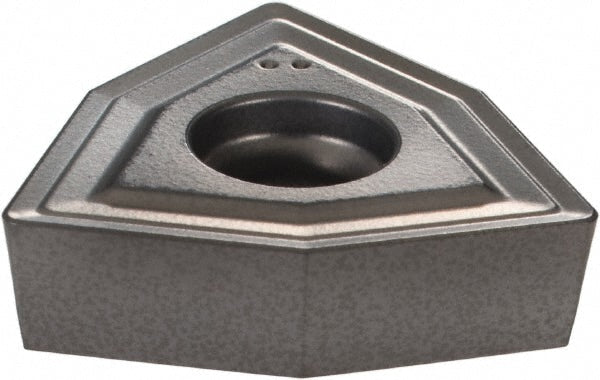

Indexable Drill Insert: WOEXW2901 K10, Solid Carbide
Item #: 88238746
Brand: Komet
Model #: 1082138201
Product Specifications
| Insert Style | WOEX |
| Insert Material | Carbide |
| Manufacturer Grade | K10 |
| Inscribed Circle (Decimal Inch) | 0.6929 |
| Inscribed Circle (mm) | 17.60 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Chipbreaker | 01 |
| Coating Process | Uncoated |
| Shape | Trigon |
| Relief Angle | 8 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; N |
| Standards | ISO 14001; ISO 90001:2008 |
| Insert Size | 120608 |
| Length (Mm) | 11.60 |
| Length (Decimal Inch - 4 Decimals) | 0.4567 |
| Included Angle Degree | 84 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
| Coating/Finish | Bright/Uncoated |
| Insert Size Code | W29 |
| Insert Hand | Neutral |
| UNSPSC Code | 23242105 |
| Country of Origin | Germany |
