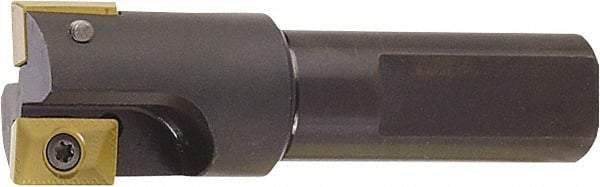

Kyocera - 1" Cut Diam, 0.6" Max Depth of Cut, 1" Shank Diam, 3.78" OAL, Indexable Square Shoulder End Mill - XPMT15T3\x85 Inserts, Flatted Shank, 90° Lead Angle, Series EM
Item #: 43316678
Brand: Kyocera
Model #: 8601005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Overall Length/Projection (Decimal Inch) | 3.7800 |
| Lead Angle | 90 |
| Series | EM |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Clamp, Screw |
| End Mill Type | End Mill |
| Cutter Style | EM |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 1 |
| Head Length (Inch) | 1-1/2 |
| Weldon Flat | Yes |
| Insert Compatibility | XPMT15T3 |
| Shank Length (Decimal Inch) | 2.2800 |
| Toolholder Material | Steel |
