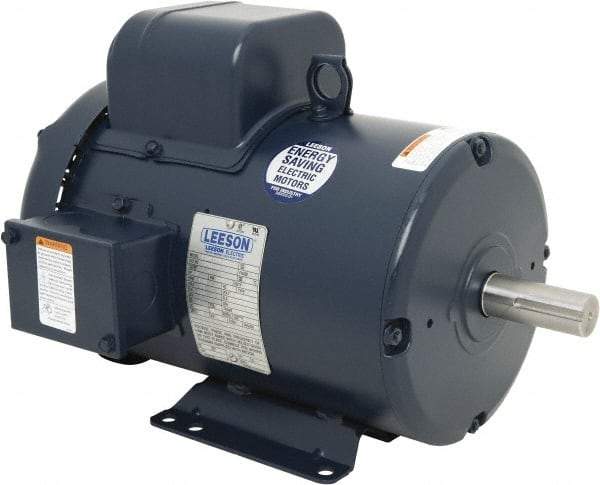

Leeson - 3 Max hp, 3,600 Max RPM, Capacitor Start Electric AC DC Motor - 115/230 V Input, Single Phase, 182T Frame, 1-1/8" Shaft Diam, Rigid Base Mount, TEFC Enclosure
Item #: 43008424
Brand: Leeson
Model #: 131637.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Capacitor Start |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 3 |
| Minimum Horsepower | 3 |
| Name Plate RPMs | 3500 |
| Phase | Single |
| Input Voltage | 115/230 |
| Frame Size | 182T |
| Full Load Amperage | 13.4 |
| Mount Type | Rigid Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | General Purpose |
| Maximum RPM | 3600 |
| PSC Code | 6105 |
