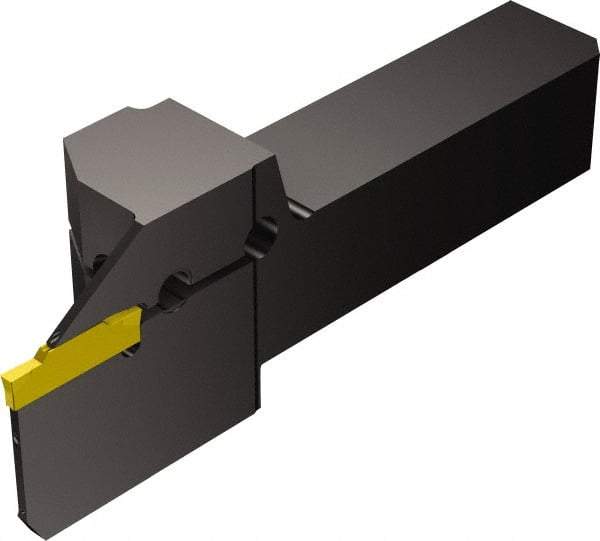

Sandvik Coromant - QS-R/LF123..C..F, Internal or External, Left Hand, 25.4mm Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 19.05mm Shank Height, 19.05mm Shank Width, 113.12mm OAL, Through Coolant
Item #: 42895573
Brand: Sandvik Coromant
Model #: 6537318
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 25.40 |
| Overall Length (mm) | 113.12 |
| Overall Length (Decimal Inch) | 4.4536 |
| Toolholder Style | QS-R/LF123..C..F |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Insert Seat Size | H |
| Maximum Hole Depth (Decimal Inch) | 2.7213 |
| Maximum Bore Depth (Decimal Inch) | 2.7213 |
| igrvh Maximum Bore Depth (mm) | 69.12 |
| Maximum Workpiece Diameter (mm) | 50.80 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0000 |
| Back of Bar to Cutting Edge (mm) | 113.12 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.4536 |
| Center to Cutting Edge (mm) | 19.55 |
| Center to Cutting Edge (Decimal Inch) | 0.7697 |
| Head Length (mm) | 69.12 |
| Head Length (Decimal Inch) | 2.7213 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
