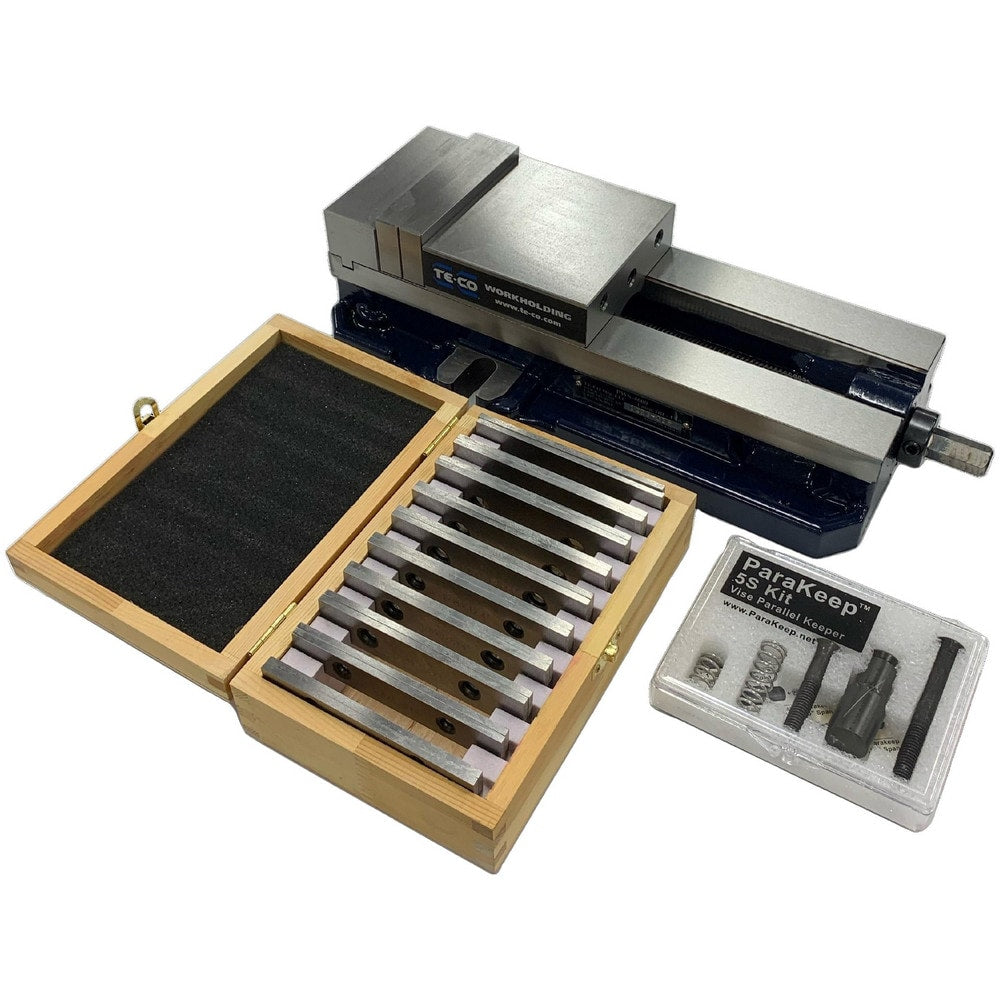

TE-CO 4" single-station vise-parallel system; includes the PWS-4600 4" wide vise, EPS4000 parallel kit (10 heights), and PKS6000 parallel keeper
Item #: 40949869
Brand: TE-CO
Model #: PWS-4600-EEPKG
Product Specifications
| Jaw Width (Decimal Inch) | 0.59 |
| Jaw Height (Decimal Inch) | 1.3800 |
| Jaw Style | Detachable |
| Jaw Material | Steel |
| Maximum Jaw Opening Capacity | 6 in |
| Throat Depth (Mm - 2 Decimals) | 35.00 |
| Throat Depth (Inch) | 1-19/50 |
| Throat Depth (Decimal Inch) | 1.3800 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Length (Decimal Inch) | 12.64 |
| Base Width (Inch) | 6.3000 |
| Base Width | 160.00 |
| Base Height (Decimal Inch) | 2.2500 |
| Overall Length (Inch) | 12-16/25 |
| Overall Length (Decimal Inch) | 12.6400 |
| Overall Length (mm) | 321.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 6.3000 |
| Overall Height (Decimal Inch) | 3.6300 |
| Vise Material | Steel |
| Load Capacity (Lb. - 3 Decimals) | 7000.000 |
| Includes | PWS-4600; PKS6000; EPS4000 |
| UNSPSC Code | 27112100 |
