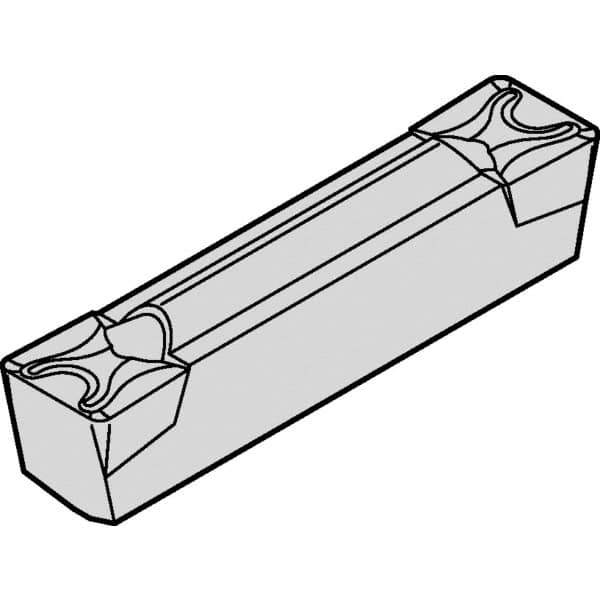

Kennametal - 0305A4G-U GMN Grade KCP25, 3.05mm Cutting Width Carbide Grooving Insert - 3.5mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiCN/Al2O3 Finish
Item #: 42688978
Brand: Kennametal
Model #: 4120661
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4G-U |
| Insert Size | 0305 |
| Material | Carbide |
| Cutting Width (mm) | 3.05 |
| Cutting Width (Decimal Inch) | 0.1201 |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Material Grade | C2/C3/C6/C7 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Insert Hand | Neutral |
| Insert Seat Size | 3 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | CVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | A4 |
