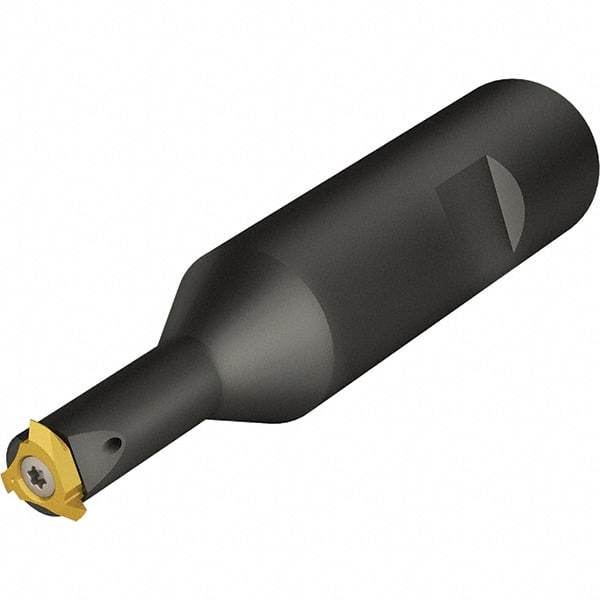

Vargus - TMSD, Internal or External, Right Hand, 1" Max Depth of Cut, 0.41 to 1/2" Groove Width, Indexable Grooving Tool Holder - 7V Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 3.74" OAL, Through Coolant
Item #: 42609651
Brand: Vargus
Model #: 67146
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Inch) | 1 |
| Minimum Groove Width (Decimal Inch) | 0.4100 |
| Maximum Groove Width (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.7400 |
| Toolholder Style | TMSD |
| Insert Compatibility | 7V |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | GMC |
| Through Coolant | Coolant Through |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | GMC 075W050-100-7-3 |
