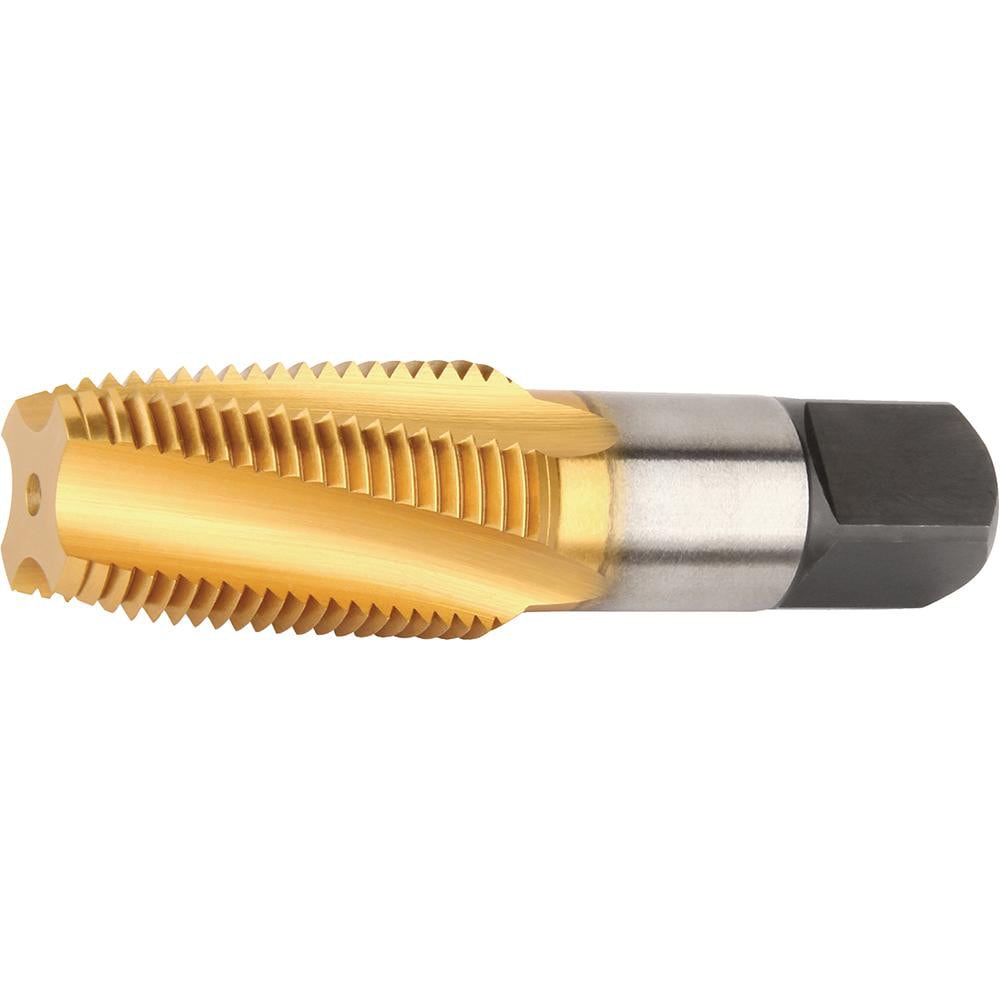

Brand: Widia / Part #: 5629642
Item #: 83167304
Brand: Widia
Model #: 5629642
Product Specifications
| Thread Size (Inch) | 1/2-14 |
| Overall Length (Decimal Inch) | 3.1300 |
| Chamfer | Semi-Bottoming |
| Thread Standard | NPTF |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 1.3750 |
| Thread Length (Inch) | 1-3/8 |
| Thread Depth (Decimal Inch) | 1.3750 |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Square Length (Decimal Inch) | 0.6250 |
| Square Size (Decimal Inch) | 0.5000 |
| Application | Tapping |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 14.0 |
| Coating/Finish | Black Oxide |
| Number Of Flutes | 4 |
