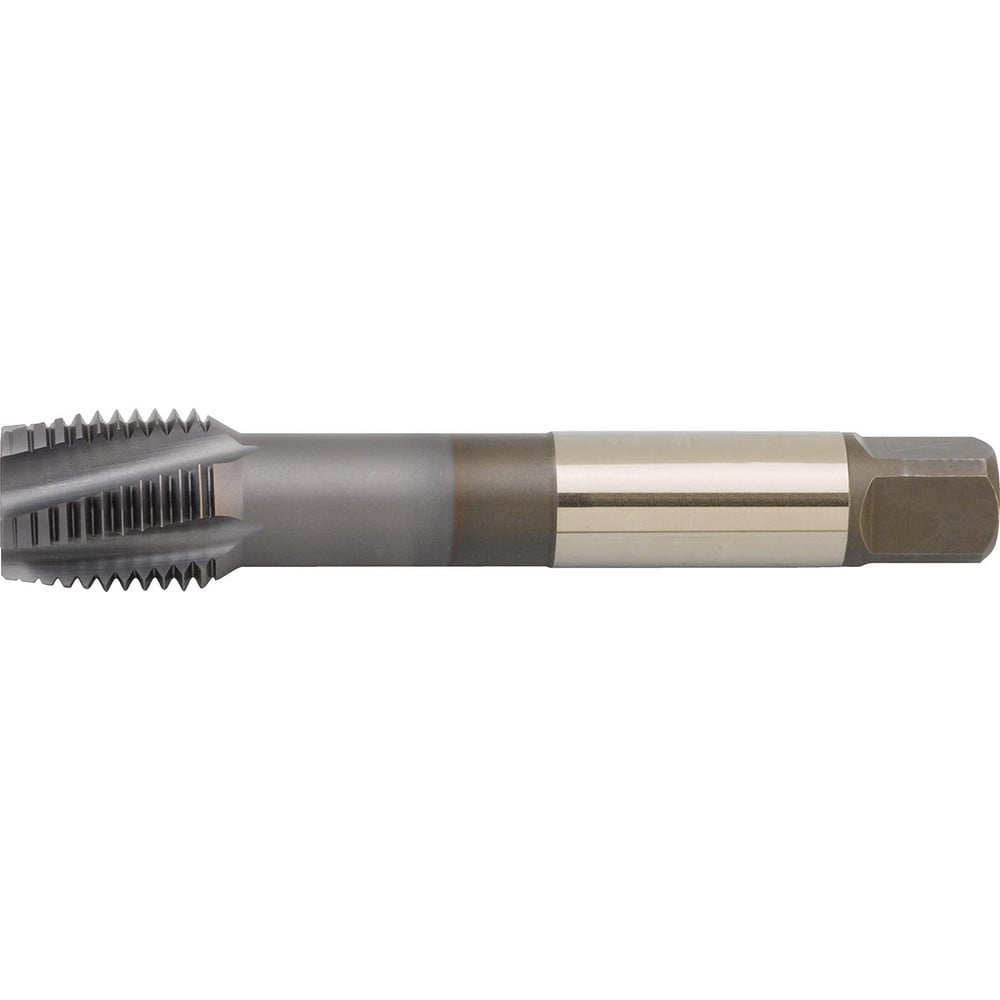

Brand: Widia / Part #: 5143532
Item #: 97423933
Brand: Widia
Model #: 5143532
Product Specifications
| Thread Size (mm) | M20x2.5 |
| Chamfer | Modified Bottoming |
| Thread Limit | D10 |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 10 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 64.00 |
| Coolant Through | Yes |
| Thread Length (mm) | 25.00 |
| Overall Length (mm) | 140.0000 |
| Thread Pitch (mm) | 2.50 |
| Thread Standard | Metric |
| Material Grade | WU32MG |
| Shank Diameter (mm) | 16.0000 |
| Square Length (mm) | 15.00 |
| Square Size (mm) | 12.00 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT31 |
