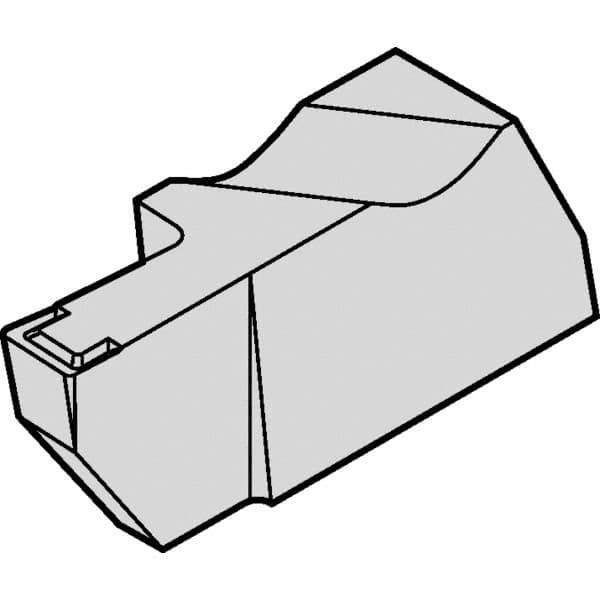

Kennametal - 2NGD K Grade KCU25, 1.5mm Cutting Width Carbide Grooving Insert - 0.16" Max Depth of Cut, Left Hand, 0.191mm Corner Radius, AlTiN Finish
Item #: 42322362
Brand: Kennametal
Model #: 5955507
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NGD |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1600 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.56 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Relief Angle | 3 |
| Insert Seat Size | 2 |
| Chipbreaker | K |
| Corner Radius (mm) | 0.191 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | NGD |
| Rake Angle | 10 |
| Overall Width (mm) | 3.84 |
| Overall Width (Decimal Inch) | 0.1510 |
| Insert Thickness (Decimal Inch) | 0.2190 |
| External Relief Angle | 3 |
| Internal Relief Angle | 3 |
