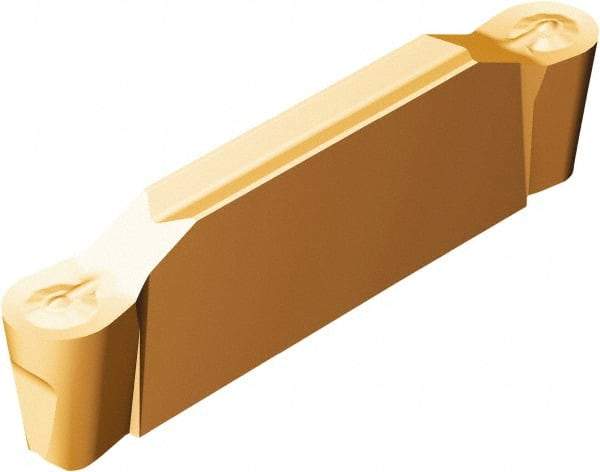

Sandvik Coromant - K2N123x2 RO 7.14mm Cutting Width Carbide Grooving Insert - 21.6mm Max Depth of Cut, Neutral, 3.57mm Corner Radius, TiAlN Finish
Item #: 42091926
Brand: Sandvik Coromant
Model #: 5736951
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x2 |
| Insert Size | K2 |
| Material | Carbide |
| Cutting Width (mm) | 7.14 |
| Cutting Width (Decimal Inch) | 0.2810 |
| Maximum Depth of Cut (mm) | 21.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.8500 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | K |
| Chipbreaker | RO |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.1406 |
| Corner Radius (mm) | 3.57 |
| Corner Radius (Decimal Inch) | 0.1406 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.9860 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123K2-0714-RO 1125 |
| Manufacturers Catalog Number | N123K2-0714-RO 1125 |
| Overall Width (Decimal Inch) | 0.2810 |
| Insert Thickness (Decimal Inch) | 0.1713 |
