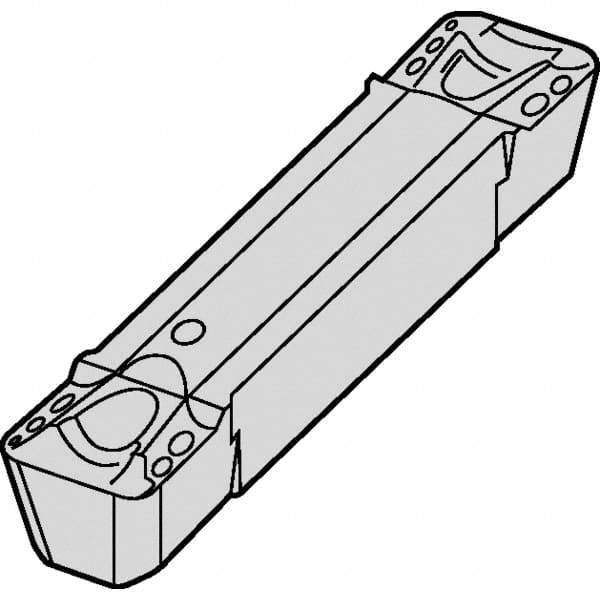

Kennametal - 0500A4G GUP Grade KCU10, 5mm Cutting Width Carbide Grooving Insert - 4.1mm Max Depth of Cut, Neutral, 0.8mm Corner Radius
Item #: 41947375
Brand: Kennametal
Model #: 3871075
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4G |
| Insert Size | 0500 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 4.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.1614 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Insert Hand | Neutral |
| Insert Seat Size | 5S |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Series | A4 |
| Rake | Positive |
