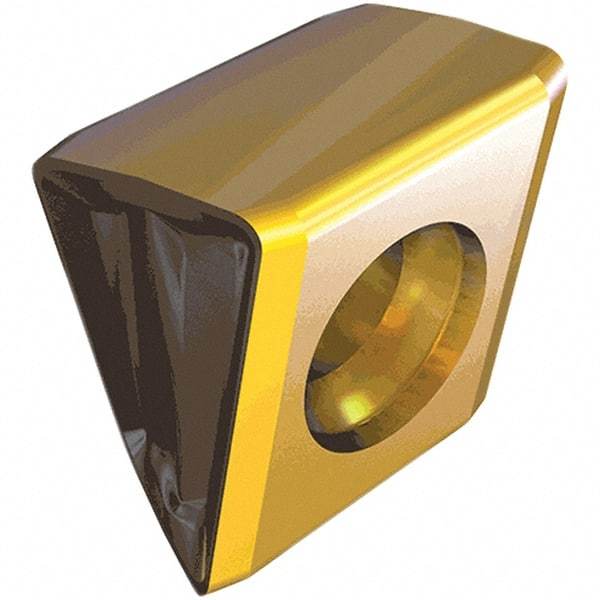

Iscar - T490 LNHT1106 PLS Grade IC840 Carbide Milling Insert - TiSiN Finish, 11.3mm Thick, 0.8mm Corner Radius
Item #: 41624487
Brand: Iscar
Model #: 5668551
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNHT |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | IC840 |
| Coating | TiSiN |
| Width (mm) | 6.00 |
| Width (Decimal Inch) | 0.2360 |
| Length (mm) | 10.50 |
| Length (Decimal Inch) | 0.4130 |
| Thickness (mm) | 11.30 |
| Thickness (Decimal Inch) | 0.4450 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Tangential |
| Insert Hand | Right Hand |
| Chipbreaker | PLS |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNHT 1106PNR-PLS |
| ISO Number | T490 LNHT 1106PNR-PLS |
| ANSI Number | T490 LNHT 1106PNR-PLS |
