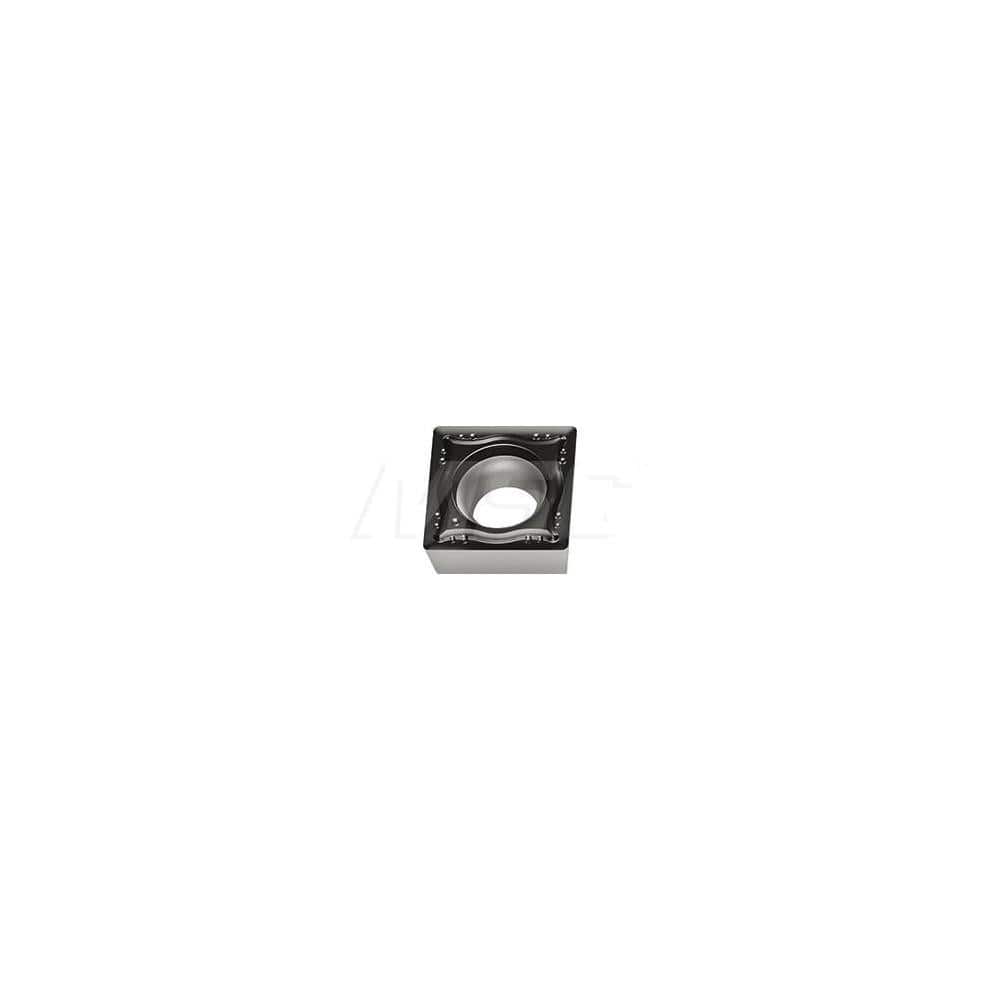

Boring Insert: SCMT060204E47 WSM10S, Solid Carbide TiAlN, Al2O3 & Al Finish, 90 ° Square, 0.016″ Corner Radius, 0.25″ Inscribed Circle, 0.094″ Thick, 7 ° Relief
Item #: 41390923
Brand: Walter
Model #: 7077865
Product Specifications
| Insert Style | SCMT |
| Insert Size Code | 060204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM10S |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | E47 |
| Series | SCMT-E47 |
| Coating Process | PVD |
| Included Angle | 90 |
| Insert Shape | Square |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | SCMT2(1.5)1-E47 |
| Iso Code | SCMT060204-E47 WSM10S |
| Standards | ISO; ANSI |
| Cutting Direction | Right Hand |
| Shape | Square |
| Manufacturers Catalog Number | SCMT060204-E47 WSM10S |
| Length (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | Al; TiAlN; Al2O3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0940 |
