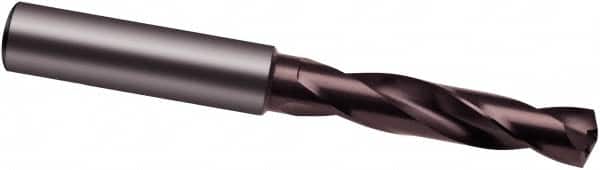

Screw Machine Length Drill Bit: 0.6693″ Dia, 140 °, Solid Carbide nano-A Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 8510
Item #: 41094764
Brand: Guhring
Model #: 9085100170000
Product Specifications
| Drill Bit Size (mm) | 17.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | nano-A |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | VA |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Drill Bit Size (Decimal Inch) | 0.6693 |
| Drill Tip Finish/Coating | nano-A |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Shank Diameter (mm) | 18.00 |
| Series | 8510 |
| Web Configuration | Tapered |
| Drill Length Type | Regular |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Flute Length (Decimal Inch) | 3.1102 |
| Flute Length (mm) | 79.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
| Specification Number | DIN 6537 |
| Specification Designation | DIN |
| Material Grade | DK460UF |
