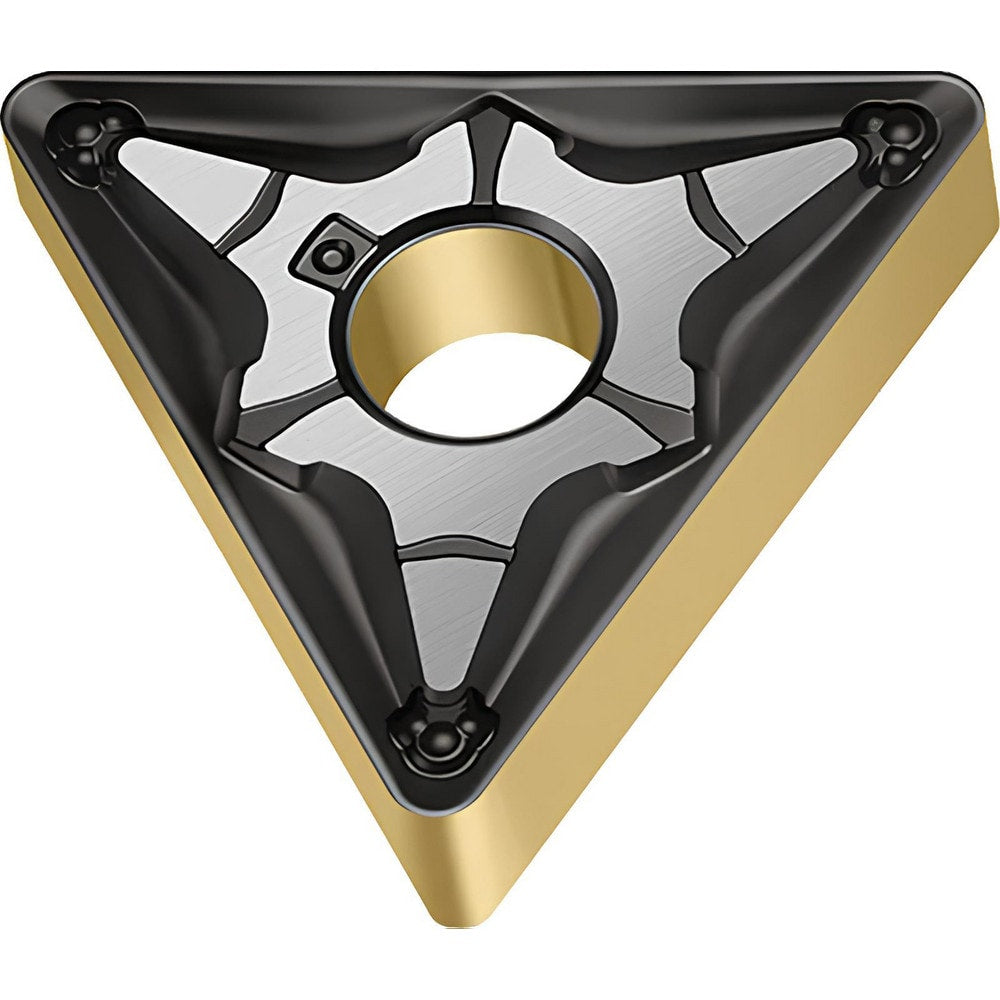

Turning Insert: TNMG431-MP5 WPP20G, Carbide
Item #: 16360455
Brand: Walter
Model #: 8116021
Product Specifications
| ANSI Insert Code | TNMG431 |
| ISO Insert Code | TNMG220404 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60 |
| Manufacturer Grade | WPP20G |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | TNMG-MP5 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TNMG220404-MP5 WPP20G |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 8116021 |
| Material Grade | K30; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 60 |
| Coating Classification | CVD |
| Chip Breaker | MP5 |
| Rake Angle | 15 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | TNMG431-MP5 WPP20G |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 431 |
| ISO Size Code | 220404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
