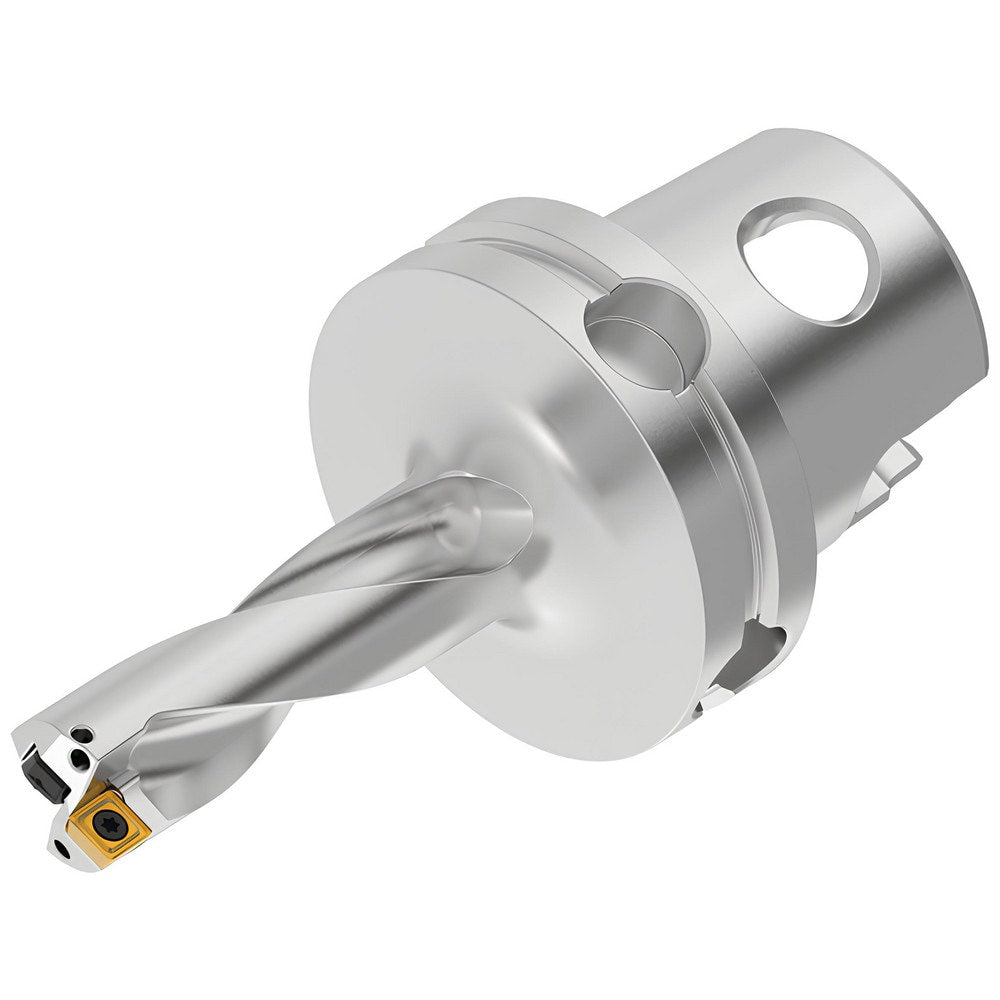

Indexable Insert Drill: DFPR0500R3KM40, 13.20 mm Max Dia, 38.10 mm Max Depth, 3xD, 40.00 mm Shank Dia
Item #: 04973798
Brand: Kennametal
Model #: 7031103
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 13.20 |
| Maximum Drill Diameter (Decimal Inch) | 0.5197 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (mm) | 38.10 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 040204; 040203 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.3503 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 1.5000 |
| Flute Length (mm) | 48.12 |
| Body Length | 85.50 |
| Body Length (Decimal Inch) | 2.3660 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 24.95 |
| Modular Connection Size | KM40 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1810x0.0790; 0.18x0.084 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR040203__I; DFPR040204__O |
| Collar Diameter (Decimal Inch) | 0.4780 |
| Collar Diameter (mm) | 12.14 |
| Insert Lock Screw | M1.8-0.35x3.8T5 |
| Coolant Through | Yes |
