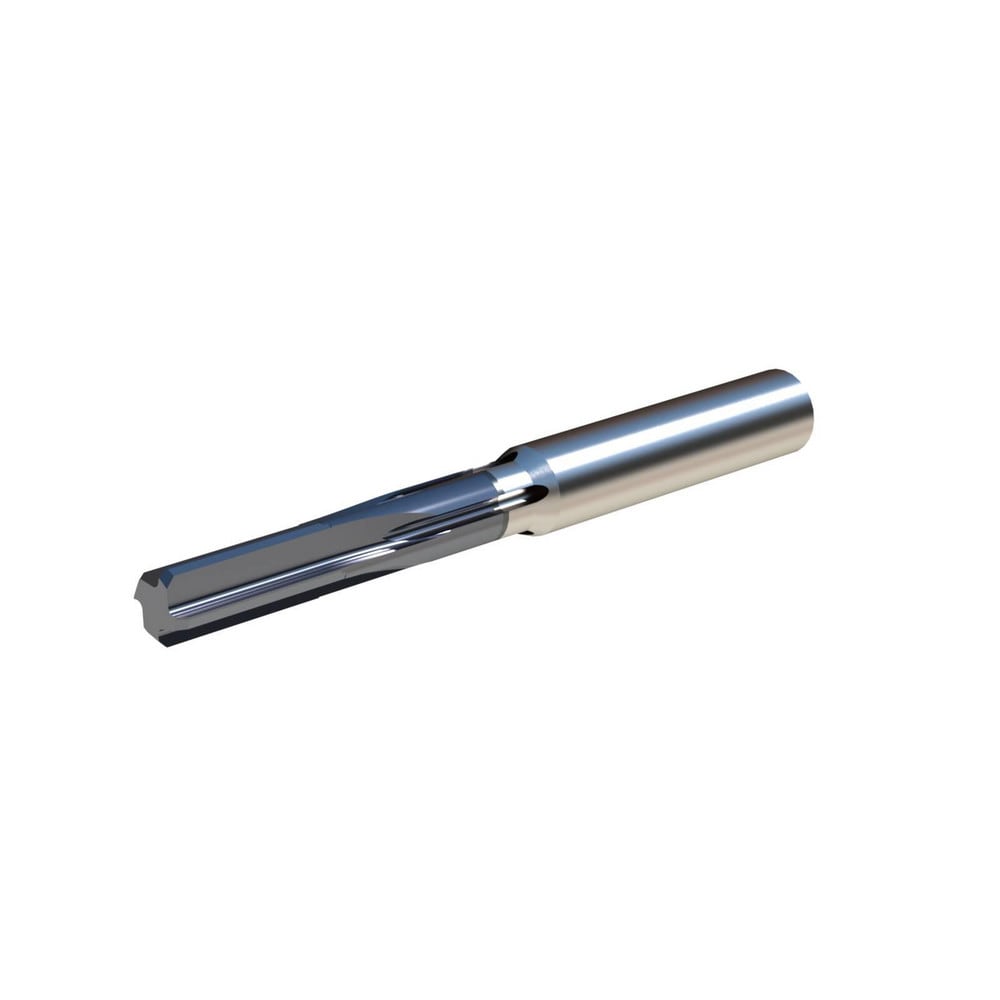

Chucking Reamers; Reamer Diameter (mm): 5.00; Tool Material: Solid Carbide
Item #: 86019825
Brand: Seco
Model #: 10238503
Product Specifications
| Reamer Diameter (mm) | 5.00 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Spiral Direction | Straight |
| Coating/Finish | TiAlN |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (mm) | 55.0000 |
| Number of Flutes | 4 |
| Shank Diameter (mm) | 6.0000 |
| Flute Length (mm) | 28.00 |
| Reamer Diameter Tolerance | 0.010 - 0.015 mm |
| Series | N5TS |
| Cutting Direction | Right Hand |
| Additional Information | Nanojet Solid Carbide Reamers Are Designed For Small Diameters From 1.461 To 9.960 mm (.057" - .391"). They Hold Tolerances From 10 µm-15µm (.0.0005"-0.0007?). Seco Nanojet Offer An Innovative Coolant Outlet That Delivers A Precise And Powerful Stream Right To The Cut. Exeptionnal Coolant Performance Contributes To Optimize Chip Control, Tool Life And Production Safety For Greater Productivity. |
| UNSPSC Code | 23241611 |
| Country of Origin | France |
