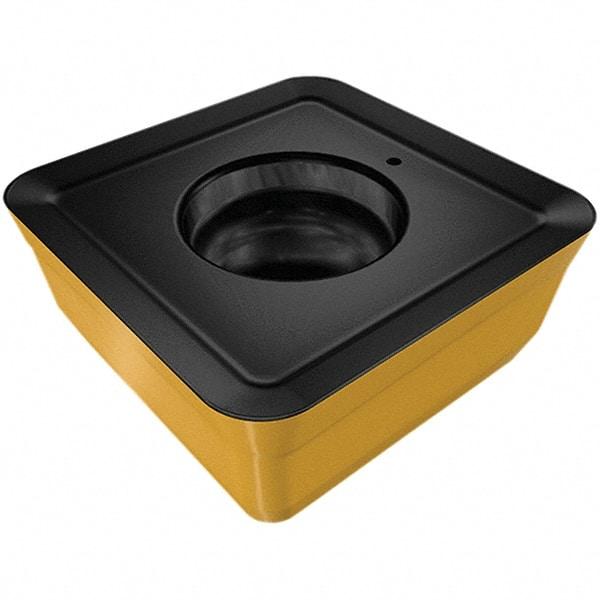

Iscar - FFQ4 SOMT1205 HP Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.2mm Thick, 1.6mm Corner Radius
Item #: 39726658
Brand: Iscar
Model #: 3323473
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FFQ4 SOMT |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2050 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | HP |
| Manufacturers Catalog Number | FFQ4 SOMT 1205RM-HP |
| ISO Number | FFQ4 SOMT 1205RM-HP |
| ANSI Number | FFQ4 SOMT 1205RM-HP |
